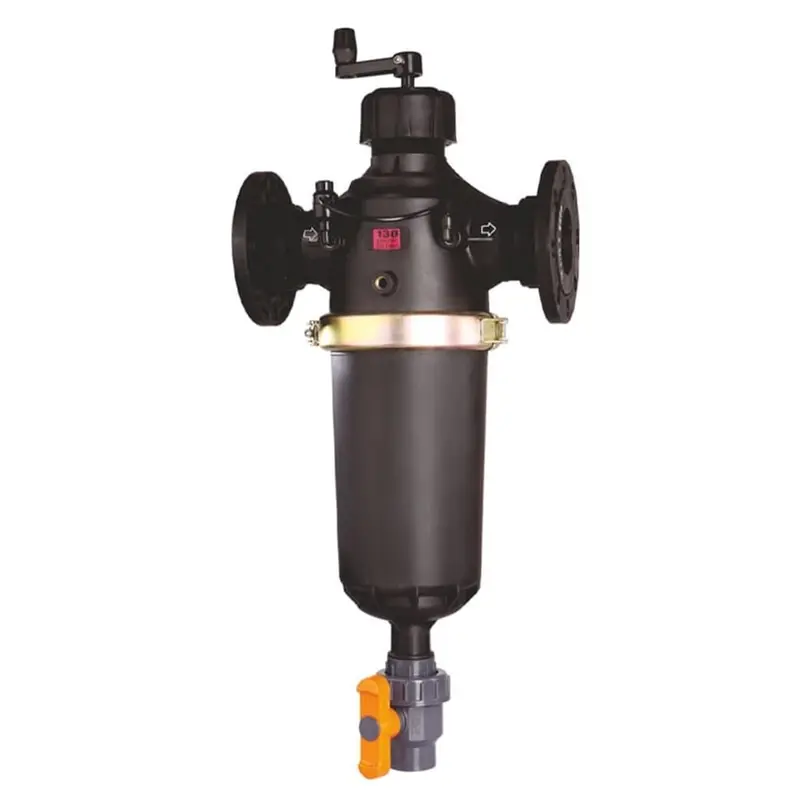

The Automat Semi-Automatic Screen Filter HT-124T-SA is designed for efficient and reliable filtration in various applications. This 2-inch screen filter can handle a nominal flow rate of 25m3/hr, with a maximum pressure capacity of 8 Kg/cm2. The filter features a 120 mesh/130-micron stainless steel screen, ensuring superior filtration performance. With a clean pressure drop of a max 0.26 kg/cm2, it guarantees minimal impact on water pressure. The stainless steel clamp closing system provides secure and easy maintenance. Ideal for agricultural and industrial use, this screen filter is built to last and ensure clean water flow.

Specifications:

• Model No: HT-124T-SA
• Product Type: Screen Filter
• Brand: Automat
• Mesh Size: 120 Mesh/130 Micron
• Filtering Cartridge: Stainless Steel Screen
• Max. Pressure: 8 Kg/cm2
• Range of Flow Rate: 18-27m3/hr
• Nominal Flow Rate: 25m3/hr
• Clean Pressure Drop: Max. 0.26 kg/cm2
• Filtration Surface Area: 554 cm2
• Closing System: Stainless Steel Clamp
• Cartridge Diameter: 119 mm
• Cartridge Length: 225 mm

Key Features:

• Efficient Filtration: 120 mesh/130-micron stainless steel screen ensures superior filtration.
• High Pressure Capacity: Handles up to 8 Kg/cm2 pressure.
• Optimal Flow Rate: Nominal flow rate of 25m3/hr for efficient operation.
• Durable Construction: Built with high-quality materials for long-lasting use.
• Easy Maintenance: A stainless steel clamp closing system allows for easy cleaning and maintenance.

Uses:

• Ideal for agricultural irrigation systems.
• Suitable for industrial water filtration applications.
• Perfect for ensuring clean water flow in various setups.
