Product Details

• Model No.: PIHF-225
• Product Type: Hydrocyclone Filter
• Brand: POONAM
• Material: Reinforced Polypropylene
• Inlet/Outlet Size: 2 inch (50 mm)
• Range of Flow Rate: 35-50 m³/hr
• Nominal Flow Rate: 25 m³/hr
• Maximum Operating Pressure: 6 kg/cm²
• Capacity of Underflow: 8 Liters

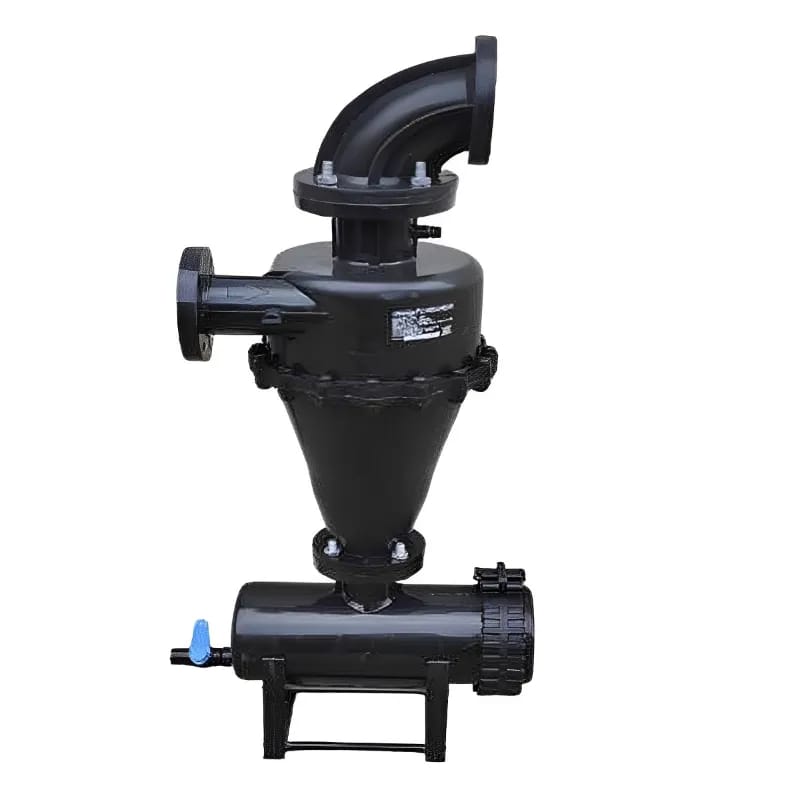

The POONAM Hydrocyclone Filter 2 inch with Flanged End Bend, model PIHF-225, is designed for efficient and durable filtration in agricultural and industrial applications. Constructed from reinforced polypropylene, this hydrocyclone filter offers excellent durability and resistance to environmental stress. The filter is equipped with a 2-inch (50 mm) inlet/outlet size, making it compatible with standard piping systems.

This hydrocyclone filter effectively separates sand and other solid particles from water, ensuring clean water for irrigation and other uses. With a flow rate range of 35-50 m³/hr and a nominal flow rate of 25 m³/hr, it can handle a substantial amount of water, making it suitable for various systems. The filter operates efficiently under a maximum pressure of 6 kg/cm², and it has an underflow capacity of 8 liters for collecting separated materials.

Features

• Durable Construction: Made from reinforced polypropylene for long-lasting performance.
• Efficient Filtration: Effectively separates sand and solid particles from water.
• High Flow Rate: Handles a range of flow rates between 35-50 m³/hr, with a nominal flow rate of 25 m³/hr.
• High Pressure Tolerance: Operates efficiently under a maximum pressure of 6 kg/cm².
• Flanged End Bend: Ensures a secure and leak-proof connection with standard piping systems.
• Underflow Capacity: Can hold up to 8 liters of separated material.

Applications

• Agricultural Irrigation: Ideal for ensuring clean water supply by removing sand and solid particles from irrigation water.
• Industrial Water Filtration: Suitable for various industrial water filtration systems.
• General Water Filtration: Can be used in any system requiring the removal of solid particles from water.

Benefits

• Reliable Performance: Provides consistent filtration to protect irrigation systems and ensure efficient operation.
• Environmental Resistance: Withstands harsh environmental conditions, ensuring long-term use.
• Ease of Installation: Compatible with standard piping systems, allowing for easy integration and installation.
