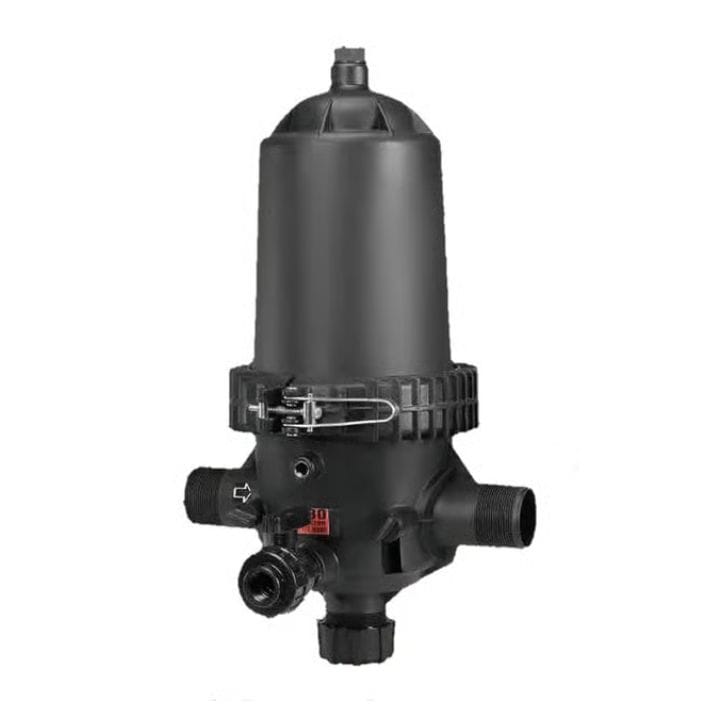

The Automat HT-136T is a high-performance 3-inch T-Type Disc Filter, designed to deliver efficient filtration at a flow rate of 50m3/hr. The filter operates by allowing water to flow from the outside to the inside of the disc stack, ensuring superior filtration. Made from a specially chemically bonded polymer, this disc filter is highly weather-resistant and durable. It features a unique Helix system that enhances performance, providing exceptional filtration results. Ideal for various agricultural applications, the HT-136T ensures clean water for irrigation and other uses.

Specifications:

• Model No: HT-136T
• Product Type: Agriculture T-Type Disc Filter
• Brand: Automat
• Inlet/Outlet Connection: 3 Inch (7.62 cm approx) BSP/NPT Male Thread
• Max. Operating Pressure: 6 kg/cm2
• Range of Flow Rate: 45 - 52 m3/hr
• Max. Recommended Flow Rate: 50 m3/hr (833 ltr/hr)
• Filtration Surface Area: 1690 cm2
• Material of Construction: Reinforced Polypropylene
• Cartridge Diameter: 121 mm
• Cartridge Length: 525 x 2 mm

Key Features:

• Durable Construction: Made from reinforced polypropylene for long-lasting use.
• Efficient Filtration: Features a special Helix system for superior filtration performance.
• High-Pressure Operation: Equipped with DuPont Nylon Hybrid Clamp and SS Lock for stability under high pressure.
• Easy Installation: Comes with an optional PPGF Slip-On Flange for convenience.
• Quick Drainage: Includes a large drain port with a 3/4" ball valve for efficient drainage.

Uses:

• Ideal for agricultural irrigation systems.
• Suitable for maintaining clean water in various farming applications.
• Helps protect irrigation equipment from clogging and damage.
