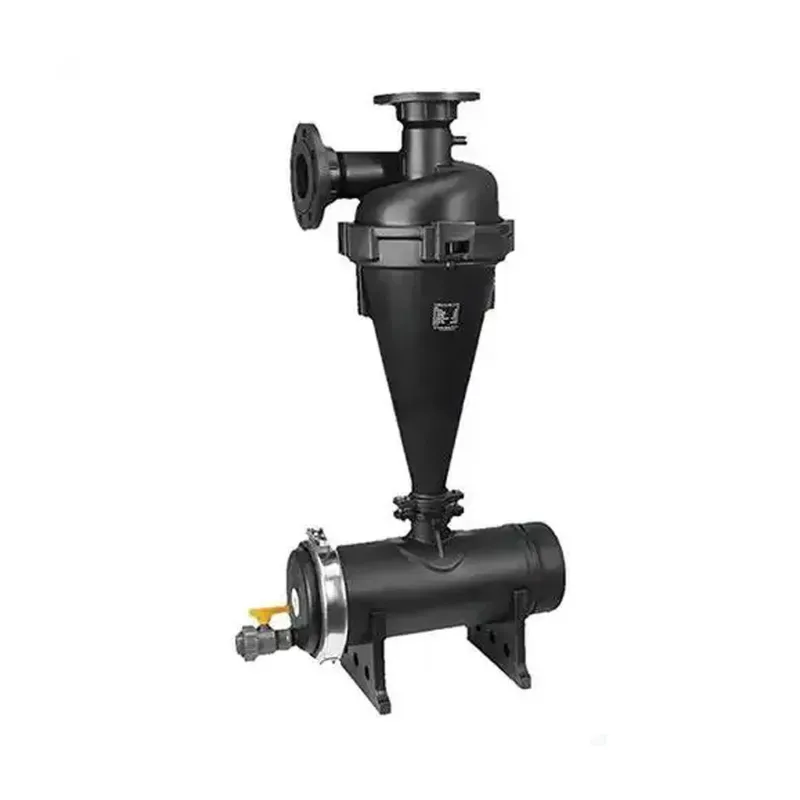

JB Hydrocyclone Filter 3 inch with flanged end is designed to filter out sand from water prior to the irrigation process. It is made from engineering plastic for durability and hydro-dynamically designed to create maximum centrifugal action so that the sand and dirt which are collected can be easily flushed out through the drain port.

Product Highlights

• Product Name: JB Hydrocyclone Filter 3 inch with Flanged End Bend
• Model No.: HT-145
• Product Type: Hydrocyclone Filter
• Brand: Jay Bharat
• Material: Reinforced Polypropylene
• Inlet/Outlet Size: 3 inch
• Range of Flow Rate: 35-50 m³/hr
• Nominal Flow Rate: 50 m³/hr
• Maximum Operating Pressure: 6 kg/cm²

Features

• Easy to Install and Low Maintenance: Simple installation process and minimal maintenance requirements.
• High Wear Resistance: Specially designed for high wear resistance, ensuring long-term durability.
• Maximum Protection: Conical shape accelerates the velocity of the water, increasing centrifugal forces and maximizing separation of particles.

Applications

• Primary Filtration: Effectively separates sand and silt particles from water.
• Recommended for: Tube wells and bore-wells.

Benefits

• Reliable Performance: Provides consistent filtration to protect irrigation systems and ensure efficient operation.
• Environmental Resistance: Withstands harsh environmental conditions, ensuring long-term use.
• Ease of Installation: Compatible with standard piping systems, allowing for easy integration and installation.
